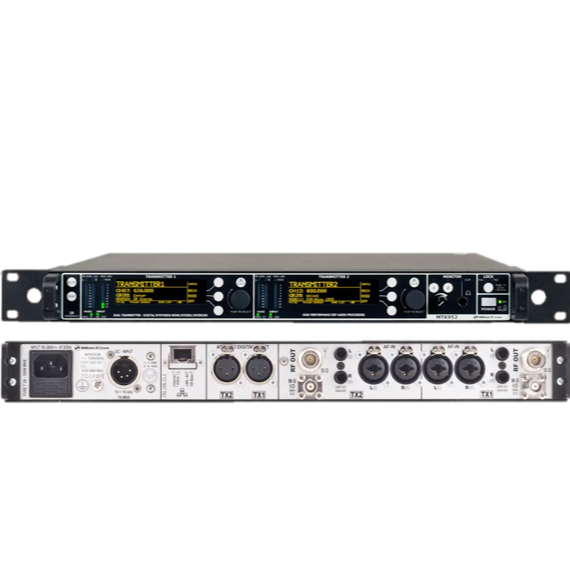

MTK952 is a versatile dual transmitter capable of working in a huge UHF bandwidth and of generating any kind of narrow-band modulations, with very high quality and low spurious emissions.

Options:
DC: DC power supply (10-16VDC)
MS: Master Slave configuration for iso-frequency network

FEATURES

• 330 MHz Bandwidth
• Direct Digital Synthesis (DDS) of signal for the highest flexibility and quality (> 70 dB stereo separation)
• Stereo, mono, intercom audio modulation
• DSP audio processing (40bit floating point / 2Gflops) with multi-companding
• Low interference output stage with wideband intermodulation phase cancellation
• 2400 user-defined frequencies (40 group by 60 freq.)
• Analogue & digital input (AES3)
• Output power up to 2 Watt (-2W0 option)
• Redundant power supply 230/110 Vac & 12 VDC (DC is optional)
• SWR (Stationary Wave Ratio) sensing on antenna outputs
• Reference In/Out for iso-frequency transmission (with option MS)
